Water flow sensor consists of a plastic valve body, a water rotor, and a hall-effect sensor. When water flows through the rotor, rotor rolls. Its speed changes with different rate of flow. The hall-effect sensor outputs the corresponding pulse signal. This one is suitable to detect flow in water dispenser or coffee machine.

We have a comprehensive line of water flow sensors in different diameters. Check them out to find the one that meets your need most.


Specifications
  - Water pressure:  ≤ 0.8MPa
  - Working voltage: DC5V-24V
  - Insulation resistance: >100MΩ
  - Working range:  0.3~6 L/min
  - Flow pulse characteristics:  f = (98*Q) ± 2% , Q = L/MIN
  - Output high pulse: >DC 4.7V(Input voltage = 5V)
  - Output low pulse:
  - Output pulse duty: 50% ± 10%
  - External diameter : 7mm
  - Internal diameter : 3.3mm

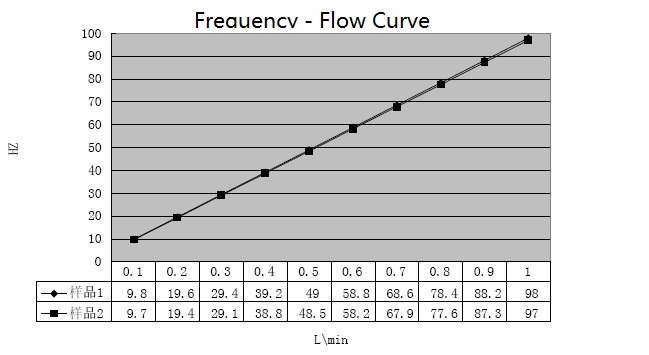

Output Characteristics

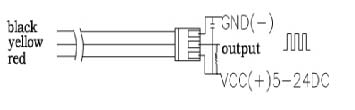

Interface Illustration
