รายละเอียดสินค้า: Industrial 4-Port RS-232 to Ethernet Data Gateway TCP/IP

The Industrial 4-Port RS-232 to Ethernet Data Gateway adapter addresses the need to connect individual RS-232C devices to an IP-based Ethernet LAN. It allows your application software to access serial devices anywhere on a local area network or the Internet.

 - Solution for connecting PLC’s, Meters, and Sensors to an IP based Ethernet LAN.

 - Provides 4-Port Serial RS-232C over Ethernet with RS-232C Speed from 300bps to 115.2Kbps.

 - Provides a remote connection through IP addressing methods (UDP, IP, TCP, ICMP, HTTP, DHCP, ARP-Ping)

 - Allows your application software to access serial devices anywhere on a local area network or the Internet



MSD-SRF4X Product Description

The MSD-SRF4X Industrial 4-Port RS-232 to Ethernet Data Gateway addresses the need to connect individual RS-232C devices, such as PLCs, meters, sensors, to an IP-based Ethernet LAN. It allows your application software to access serial devices anywhere on a local area network or the Internet.

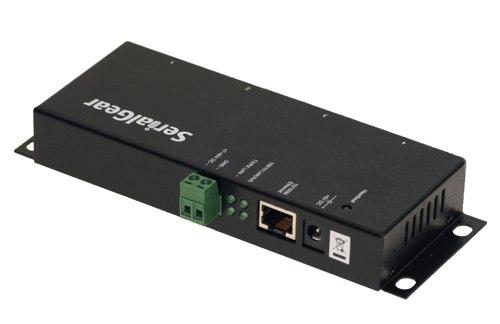

Industrial 4-Port RS-232 to Ethernet Data Gateway back panel image

The 4-Port RS-232 to Ethernet Data Gateway has a built-in watch dog function that is designed to reset the MSD-SRF4X when the hardware hangs because some other unknown causes in the system.

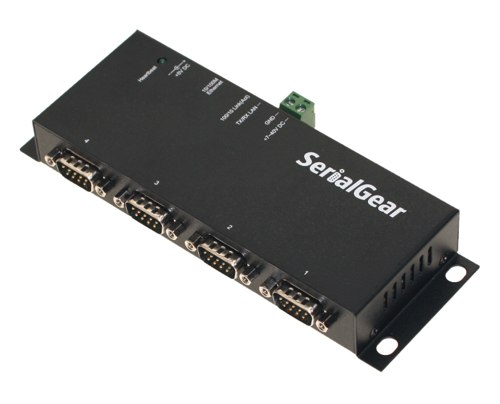

4-Port RS-232 to Ethernet Data Gateway serial port image

The MSD-SRF4X 4-Port RS-232 to Ethernet Gateway is easy to install and use remotely through a variety IP addressing methods (UDP, IP, TCP, ICMP, HTTP, DHCP, ARP-Ping). It is ideal for applications requiring RS232 serial port environments and network device management.

4-Port RS-232 to Ethernet package contents image





Additional Features:

 - Virtual Com port software included

 - Provides 4-Port Serial RS-232C over Ethernet

 - Provides 4 DB9 RS-232C Male Connectors

 - RS-232C Speed from 300bps to 115.2Kbps

 - Provides one 10/100Mbps, RJ45 LAN Port

 - Supports Setup and Connect Passwords

 - Supports Standard Windows Socket Protocol

 - Provides TCP Server, TCP Client, and UDP

 - Built-in Watch Dog Feature

 - Wall Mounting Kit Included



LAN Port:

 - Ethernet: 10/100 Mbps, RJ45 connector

 - Protocols: UDP, IP, TCP, ICMP, HTTP, DHCP, ARP-Ping



Serial Interface:

 - RS-232 Connector: DB9 male

 - Parity: None, Even, Odd

 - Data bits: 5,6,7,8

 - Speed: 300bps to 115.2Kbps

 - Provides wall mounting Kit

 - Watch Dog Function

 - A built-in watch dog function is designed to reset the MSD-SRF4X when the hardware/software hangs.



Power Requirements:

 - 5V DC, 250mA (max) from DC Jack Power Input Connector

 - Optional +7 – 40V DC through 2-wire power terminal connector

 - Power supply is not included



Environmental:

 - Operating Temp.: 0 to 558C (32 to 1318F)

 - Storage Temp: -20 to 858C (-4 to 1858F)

 - Operating Humidity: 5 to 95% RH



OS Support:

 - Windows XP, Vista, Windows 7, Windows 8
