1000:1 Micro Metal Gearmotor HP 6V

950.00 THB

ราคาดังกล่าวรวมภาษีมูค่าเพิ่ม 7% เรียบร้อยแล้ว

Facebook Share << คลิ๊ก Share
Part No. : ELE-WA361087349
Manufacture No. : 1595
จำนวนในสต็อก : 2
ต้องการสั่งซื้อจำนวน
OR
ชำระเงิน PayPal แบบใหม่
ช่วยให้คุณซื้อสินค้าได้รวดเร็วและง่ายยิ่งกว่าเดิม
เพิ่มเพื่อน

รายละเอียดสินค้า: 1000:1 Micro Metal Gearmotor HP 6V

This miniature, high-torque gearmotor has a 1000:1 gearbox, making it a great choice for applications requiring fine control at very low speeds. These units have a 0.365"-long, 3 mm-diameter D-shaped output shaft.



Key specs at 6 V: 14 RPM and 40 mA free-run, 70 oz-in (5 kg-cm) and 0.36 A stall. (Note: stall torque and current specifications are theoretical values; stalling the motor will damage the gearbox.)



Overview

These tiny, high-torque gearmotors have the highest gear ratio of any motor we sell, which makes them a great choice for applications that require extremely low motor speeds. With no load, the 1000:1 micro metal gearmotor HP output shaft turns at approximately 32 RPM at 6 V, and we were able to achieve rotation rates of around 2.5 RPM at 0.5 V on a test unit (note that performance will vary slightly from unit to unit). The lower-power 1000:1 micro metal gearmotor is even slower, with a no-load rotation rate of approximately 14 RPM at 6 V, and we were able to a achieve smooth rotation speed of around 1 RPM at 0.6 V on a test unit.



Note: Because of the high gear ratio, these motors can generate enough torque to damage themselves, so you should avoid stalling them.



These motors are intended for use at 6 V, though in general, these kinds of motors can run at voltages above and below this nominal voltage, so they should comfortably operate in the 3 – 9 V range (rotation can start at voltages as low as 0.5 V). Lower voltages might not be practical, and higher voltages could start negatively affecting the life of the motor.



Micro Metal Gearmotor Versions

The micro metal gearmotors are available in a wide range of gear ratios—from 5:1 up to 1000:1—and offer a choice between two different motors: high-power (HP) and standard. With the exception of the 1000:1 gear ratio versions, all of the micro metal gearmotors have the same physical dimensions, so one version can be easily swapped for another if your design requirements change. Please see the micro metal gearmotor comparison table for detailed specifications of all our micro metal gearmotors. This dynamically-sortable table can help you find the gearmotor that offers the best blend of speed, torque, and current-draw for your particular application. A more basic comparison table is available below.



Some versions of the gearmotors are sold with an additional 1mm-diameter output shaft that protrudes from the rear of the motor. This 4.5mm-long rear shaft rotates at the same speed as the input to the gearbox and offers a way to add a custom-built encoder to provide motor speed or position feedback.



Gear Ratio

Speed
@ 6V

Stall Torque
@ 6V

Stall Current
@ 6V



Gearbox Shaft Only



Gearbox & Motor Shaft

5:1

6000 RPM

2 oz-in

1600 mA

5:1 micro HP



2500 RPM

1 oz-in

360 mA

5:1 micro



10:1

3000 RPM

4 oz-in

1600 mA

10:1 micro HP

10:1 micro HP

1300 RPM

2 oz-in

360 mA

10:1 micro



30:1

1000 RPM

9 oz-in

1600 mA

30:1 micro HP

30:1 micro HP

440 RPM

4 oz-in

360 mA

30:1 micro

30:1 micro

50:1

625 RPM

15 oz-in

1600 mA

50:1 micro HP

50:1 micro HP

250 RPM

7 oz-in

360 mA

50:1 micro

50:1 micro

75:1

400 RPM

22 oz-in

1600 mA

75:1 micro HP



170 RPM

9 oz-in

360 mA

75:1 micro



100:1

320 RPM

30 oz-in

1600 mA

100:1 micro HP

100:1 micro HP

120 RPM

12 oz-in

360 mA

100:1 micro

100:1 micro

150:1

200 RPM

40 oz-in

1600 mA

150:1 micro HP



85 RPM

17 oz-in

360 mA

150:1 micro



210:1

140 RPM

50 oz-in

1600 mA

210:1 micro HP



60 RPM

27 oz-in

360 mA

210:1 micro



250:1

120 RPM

60 oz-in

1600 mA

250:1 micro HP



50 RPM

32 oz-in

360 mA

250:1 micro



298:1

100 RPM

70 oz-in

1600 mA

298:1 micro HP

298:1 micro HP

45 RPM

40 oz-in

360 mA

298:1 micro

298:1 micro

1000:1

32 RPM

125 oz-in

1600 mA

1000:1 micro HP



14 RPM

70 oz-in

360 mA

1000:1 micro





Note: The 1000:1 gearmotors can generate enough torque to damage themselves. The stall torque values given for those two motors are theoretical, and we strongly recommend you avoid stalling them.



Gearmotor Dimensions

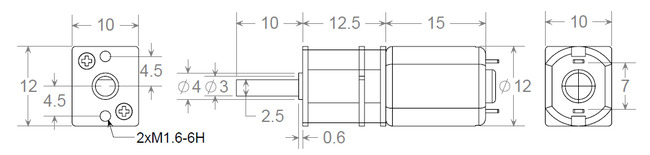

The diagram below shows the dimensions for this gearmotor. The 1000:1 gear ratio version of the micro metal gearmotor has a longer gearbox than other micro metal gearmotor versions (12.5 mm for the 1000:1 compared to 9 mm for all gear ratios). All the other dimensions match those of the other micro metal gearmotor versions.







1000:1 micro metal gearmotor dimensions (units in mm).







The gearbox has a long (0.365" or 9.27 mm), 3 mm-diameter D-shaped metal output shaft, and the brass faceplate has two mounting holes threaded for M1.6 screws (1.6 mm diameter, 0.35 mm thread pitch). It weighs approximately 0.37 oz (11 g).



Note: Due to the longer gearbox, the 1000:1 micro metal gearmotors do not work with the encoder for Pololu wheel 42×19mm. These gearmotors can be used with our micro metal gearmotor bracket and extended bracket, but these brackets will not cover the entire gearbox the way they do when used with other gear ratios of micro metal gearmotors.



Motor Accessories

  - Wheels and Hubs: The micro metal gearmotor’s output shaft matches our assortment of Pololu wheels and the Solarbotics RW2 rubber wheel. You can also use the Pololu universal mounting hub to mount custom wheels and mechanism to the micro metal gearmotor’s output shaft.





Pololu wheel 32×7mm on a micro metal gearmotor.

Pololu wheel 42×19mm with micro metal gearmotor.

A pair of Pololu universal aluminum mounting hubs for 3 mm shaft.



Black Pololu 70×8mm wheel on a Pololu micro metal gearmotor.

Black Pololu 90×10mm wheel on a Pololu micro metal gearmotor.



  - Mounting Brackets: Our mounting bracket (also available in white) and extended mounting bracket make it easy to mount the gearmotor. We recommend the extended mounting bracket for wheels with recessed hubs, such as the Pololu wheel 42×19mm. Note that when used with the longer gearbox found on the 1000:1 gear ratio version of the micro metal gearmotor, these brackets do not fully enclose the exposed gears they way they do in the right picture below. This picture shows another version of the micro metal gearmotor.





Black micro metal gearmotor mounting bracket pair with included screws and nuts.

White micro metal gearmotor mounting bracket pair with included screws and nuts.

Pololu micro metal gearmotor bracket extended with micro metal gearmotor.





  - Motor Controllers: We have a number of motor controllers that make it easy to drive these micro metal gearmotors, including our qik 2s9v1 dual serial motor controller and our programmable Baby Orangutan and Orangutan SVP robot controllers. The inexpensive qik 2s9v1 allows variable speed and direction control of two small, brushed DC motors using a simple serial interface; the Orangutans combine a programmable Atmel AVR microcontroller and dual motor driver all in a single package and make interfacing with the motor drivers simple when you use our Pololu AVR library. All of the above controllers use the TB6612FNG dual motor driver, for which we also offer a simple carrier board.





Pololu qik 2s9v1 dual serial motor controller.

Baby Orangutan B-48/B-168/B-328.

TB6612FNG dual motor driver carrier.





Selecting the Right Gearmotor

We offer a wide selection of metal gearmotors that offer different combinations of speed and torque. Our metal gearmotor comparison table can help you find the motor that best meets your project’s requirements.







Some of the Pololu metal gearmotors.





Dimensions
  - Size:  27.5 x 10 x 12 mm
  - Weight:  0.37 oz
  - Shaft diameter:  3 mm



General specifications
  - Gear ratio:  1000:1
  - Free-run speed @ 6V:  14 rpm
  - Free-run current @ 6V:  40 mA
  - Stall current @ 6V:  360 mA1
  - Stall torque @ 6V:  70 oz·in1
  - Extended motor shaft?:  N



Notes: This is a theoretical value; stalling the gearbox output shaft will damage the gearbox.
